Filter paper green tea packaging machine high quality

Specifications

Specification

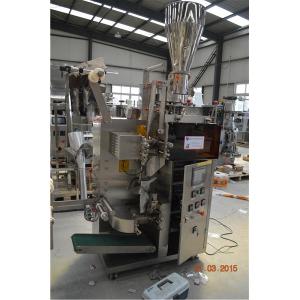

automatic Tea Bag Packing Machinery

1.PLC controlwww.easypacking.net

2.1-5g/bag

3.inner(with thread ,tag) and outer bag

4.three side sealing

I. APPLICATIONS:

Automatic Teabag packing machine is suitable for the dual bag packing of small grain-like materials, such as

tea leafs, medicinal tea and healthy teas.

II. FEATURES

1. Controlled Omrong PLC

2. Computer touch screen .easy operating

3. Simply configuration, reduce the cost

4. producing inner and outer bags automatically, and the inner bag with thread and tag.

III. ASSISTANT EQUIPEMENT: Air Compressor

IV. TECHNICAL DATA:

1. Sealing type: three sides sealing

2. Filling range: 1-5g/bag

3. Size of inner bag: L50—75MM; W50—75MM

4. Size of outer bag: L85—120MM; W75—95MM

5. Size of tag: 25X25(L*W)

6. Power: 220V/50HZ single phase

7. Total power: 3.7kw

8. Weight: 650KG

9. Dimension: 1050X700X1300(L*W*H mm)

www.easypacking.net

   Fujian Easy Packing Machinery Co. Ltd was established in 2001,located in Xiamen city, Fujian Province, China, near to Xiamen port-- the largest international sea port. Since Easy Packing was established, we are engaged in improving the quality of the bag packaging products. We aim at making the environmental and healthy bag package. Through more than 10 years developing, Easy Packing has become a professional supplier for packing machine from researching, manufacturing to selling .

    According to the type of the machine, consisting of five series products, 1.Tea bag packing machine,2.granule packing machine,3. powder packing machine, 4.paste packing machine,5. liquid packing machine,. The machines widely applied for food industry, medicine industry ,chemical industry, hardware industry etc. such as packing coffee, sugar, tea, snacks, ketchup and so on, All machines can automatically finish bag-making, measuring, filling, sealing, cutting and counting
